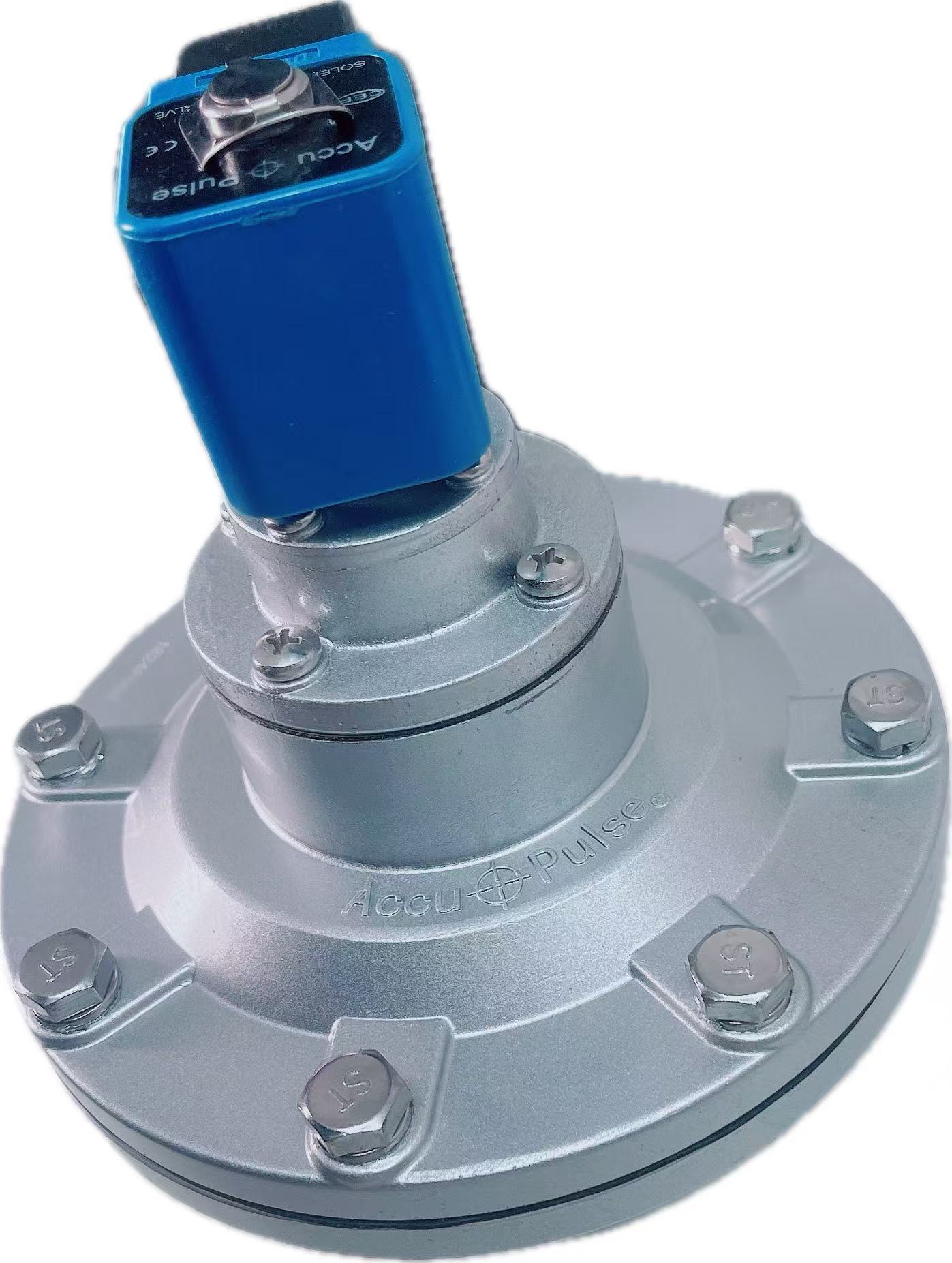

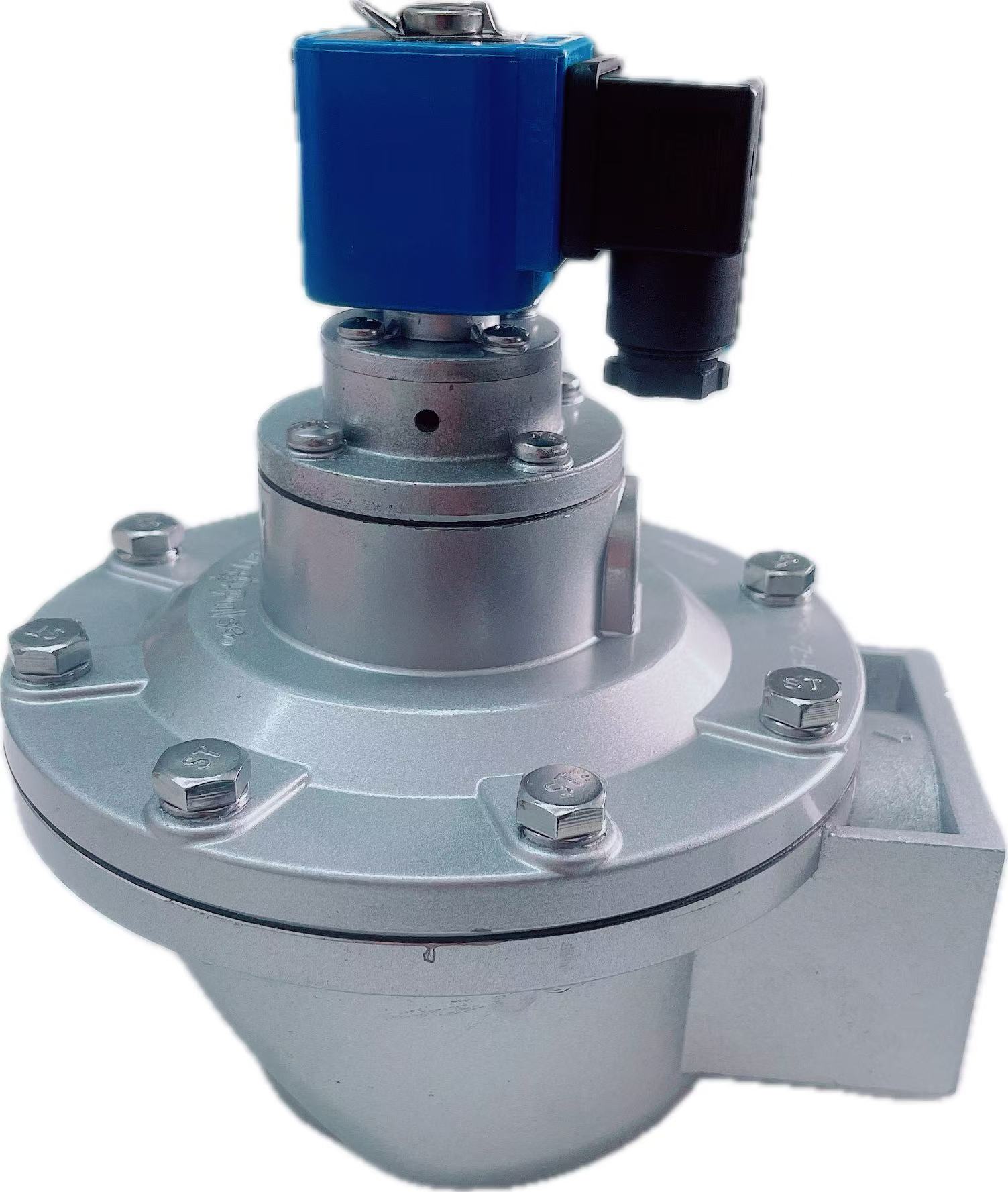

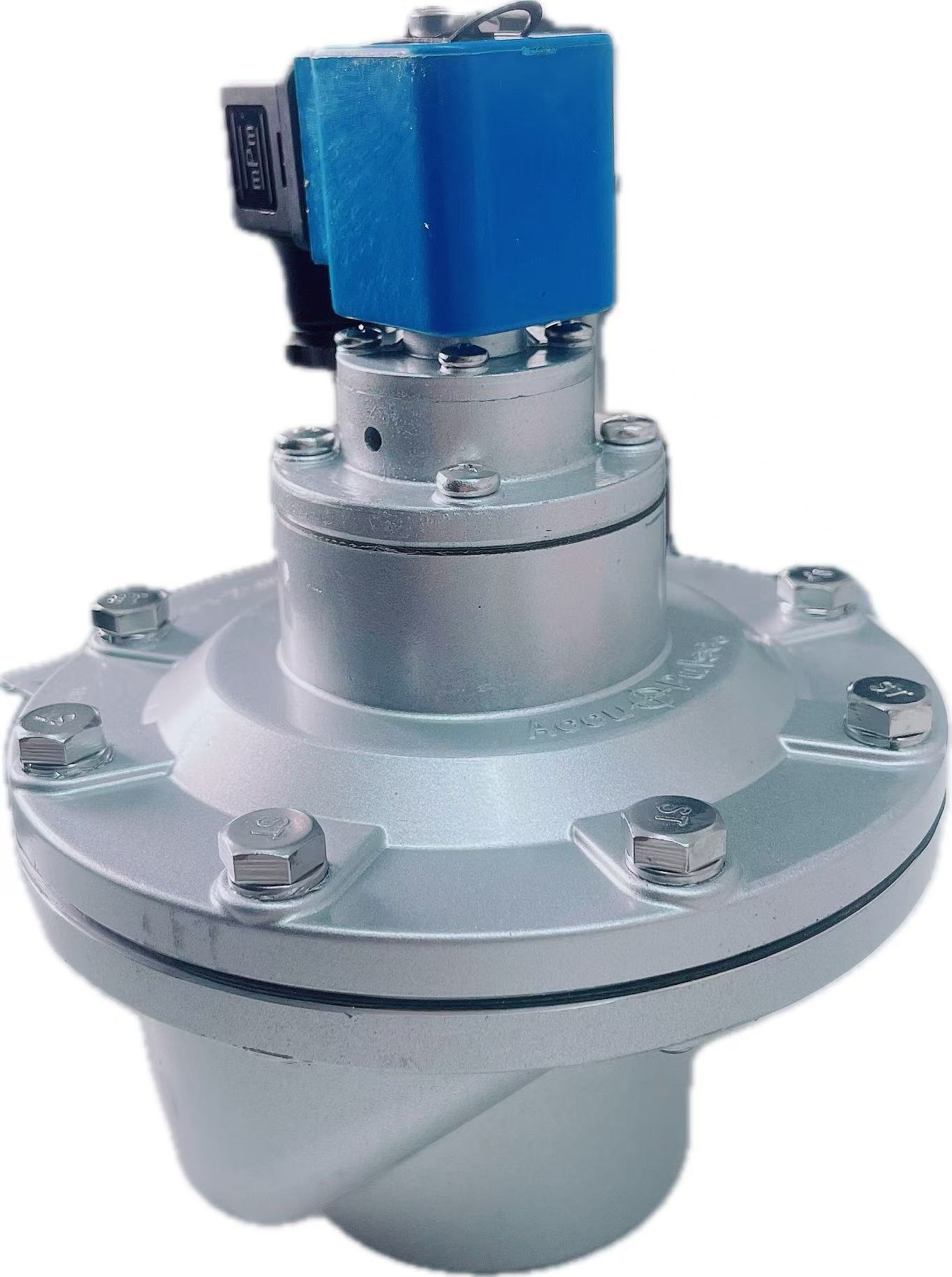

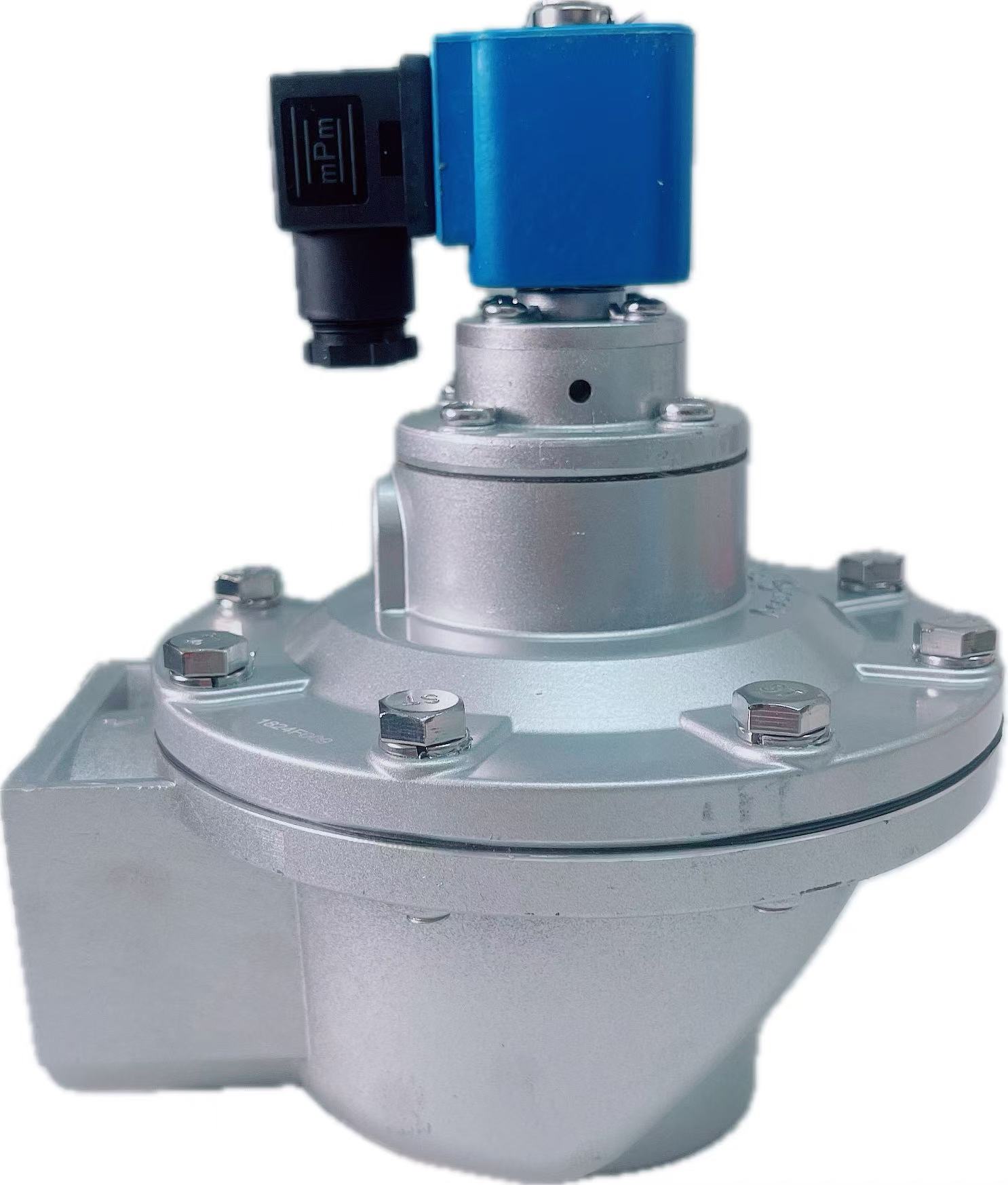

In numerous stages of industrial production, the control of dust pollution is of vital importance. The industrial dust collector, as the core equipment to solve this problem, requires the coordinated work of many precise components for its efficient operation. DMF-Z-50 is one of the key electromagnetic control components.
I. In-depth Analysis of Working Principle
The DMF-Z-50 pulse valve mainly relies on the magnetic field generated by the electromagnetic coil to precisely control the valve’s action, thereby achieving efficient on-off operation of the airflow. When the electromagnetic coil is energized, the instantaneous magnetic field will attract the valve core to move upward, and the originally closed air passage channel will immediately open. Compressed air can then flow smoothly through, providing necessary power support for the subsequent dust removal process. When the electromagnetic coil is de-energized, the valve core, under the strong elastic force of the spring, quickly moves downward, and the air passage channel is closed again. The entire process is seamless and extremely rapid.
From its internal structure, the diaphragm ingeniously divides the electromagnetic pulse valve into two gas chambers, the front and the rear. In the initial state, after the compressed air is connected, the compressed air will slowly enter the rear gas chamber through the carefully designed throttle hole. At this time, the pressure in the rear gas chamber rises rapidly, and the strong pressure tightly presses the diaphragm assembly against the output port of the valve, keeping the electromagnetic pulse valve in a “closed” state, ensuring that the gas does not leak. When the system equipment sends out a precise pulse signal, the armature of the electromagnetic pulse valve will quickly move backward, and the exhaust hole in the rear gas chamber opens instantly. The gas in the rear gas chamber is rapidly discharged in a very short time, and the pressure drops sharply. Due to the lack of support from the rear gas chamber pressure, the diaphragm assembly moves backward rapidly under the pressure of the front compressed air, allowing the compressed air to flow through the valve output port powerfully. At this time, the electromagnetic pulse valve is in the “open” state, efficiently completing the blowing task. When the pulse signal disappears, the armature of the electromagnetic pulse valve is quickly reset by the return spring, and the exhaust hole of the rear gas chamber closes. The pressure in the rear gas chamber begins to rise again, and the diaphragm assembly again closely adheres to the output port of the valve. The electromagnetic pulse valve returns to the “closed” state, preparing for the next blowing.
II. Widespread Application Areas
The DMF-Z-50 pulse valve holds a crucial position in the industrial dust collector system and is widely used in various bag-type dust collectors and electrostatic dust collectors, etc. In bag-type dust collectors, its main responsibility is to provide high-pressure pulse gas during the dust removal process. As industrial production continues, the filter bags will gradually accumulate a large amount of dust particles, which will seriously affect the ventilation effect and dust removal efficiency of the dust collector. At this time, the DMF-Z-50 pulse valve, according to the preset program, periodically sprays high-pressure pulse gas onto the filter bags. The powerful airflow can instantly blow off the dust particles on the filter bags, allowing them to regain their good filtering performance, thus ensuring that the dust collector is always in an efficient operating state and continuously purifies industrial waste gas.
In electrostatic dust collectors, the DMF-Z-50 pulse valve also plays an indispensable role. It can precisely control the airflow within the electrostatic dust collector, ensuring a stable and uniform airflow distribution in the electric field area. Stable airflow helps to improve the dust capture efficiency of the electrostatic dust collector, allowing the dust in the industrial waste gas to be more effectively adsorbed and collected, further enhancing the performance and stability of the entire dust removal system.
III. Outstanding Product Features
High efficiency and energy saving: The DMF-Z-50 pulse valve adopts advanced design concepts and cutting-edge technologies, ensuring strong blowing capacity while significantly improving energy utilization efficiency. It can quickly respond to the pulse signals sent by the system, precisely control the on-off and flow rate of the airflow, and avoid unnecessary waste of energy. In practical industrial applications, compared with traditional pulse valves, it can significantly reduce energy consumption and save a large amount of operating costs for enterprises.
High durability: This pulse valve is extremely meticulous in material selection, using high-quality materials for manufacturing. These materials have excellent corrosion resistance and wear resistance, and can operate stably and continuously in harsh industrial environments. Whether facing high temperatures, high humidity environments, or industrial exhaust gases containing corrosive gases, the DMF-Z-50 pulse valve can always maintain good performance, and its service life is much longer than similar products, greatly reducing the frequency of equipment maintenance and replacement, and providing a strong guarantee for the continuous production of enterprises.
Easy installation: Its structural design is simple and clear, and the installation and disassembly of each component are very simple. During the actual installation process, workers do not need complex tools and professional skills to complete the installation task quickly. This simple and convenient installation method not only saves installation time and labor costs, but also makes it easy to perform maintenance and replace parts of the equipment in the later maintenance and maintenance process, improving the maintenance efficiency of the equipment.
VII. Precautions during use
Power matching is crucial: When using the DMF-Z-50 pulse valve, it is necessary to ensure that the connected power voltage is exactly the same as the rated voltage of the electromagnetic coil. If the power voltage is too high, it may cause the electromagnetic coil to overheat and burn out; while if the power voltage is too low, the pulse valve will not work properly, affecting the performance of the entire dust removal system. Therefore, during the installation and debugging of the equipment, it is necessary to carefully check the power parameters to ensure that they are consistent with the requirements of the pulse valve.
Sealing components should be inspected regularly: The sealing components are the key components to ensure the sealing performance of the pulse valve. During long-term use, the sealing components may become loose due to wear and aging, resulting in leakage of gas and affecting the normal operation of the pulse valve. Therefore, regular inspections of the status of the sealing components are necessary. If the sealing components are severely worn, they should be replaced in time to ensure that the valve always has good sealing performance and maintains the efficient operation of the dust removal system.
Selection for high-temperature environments: If the DMF-Z-50 pulse valve needs to work in a high-temperature environment, a special high-temperature pulse valve must be selected. Ordinary pulse valves may have changes in internal material properties in high-temperature environments, causing the valve to fail to open and close properly, or even be damaged. While high-temperature pulse valves use materials resistant to high temperatures and special structural designs to effectively resist the influence of high-temperature environments, ensuring stable and reliable operation in high-temperature conditions.
In conclusion, the DMF-Z-50 pulse valve, with its unique working principle, wide application fields, outstanding product features, and clear usage precautions, plays an irreplaceable important role in industrial dust removal system. It not only provides an efficient and stable dust treatment solution for industrial production, but also has significant advantages in energy conservation and environmental protection, as well as reducing enterprise operating costs. It is one of the important forces promoting industrial sustainable development.
