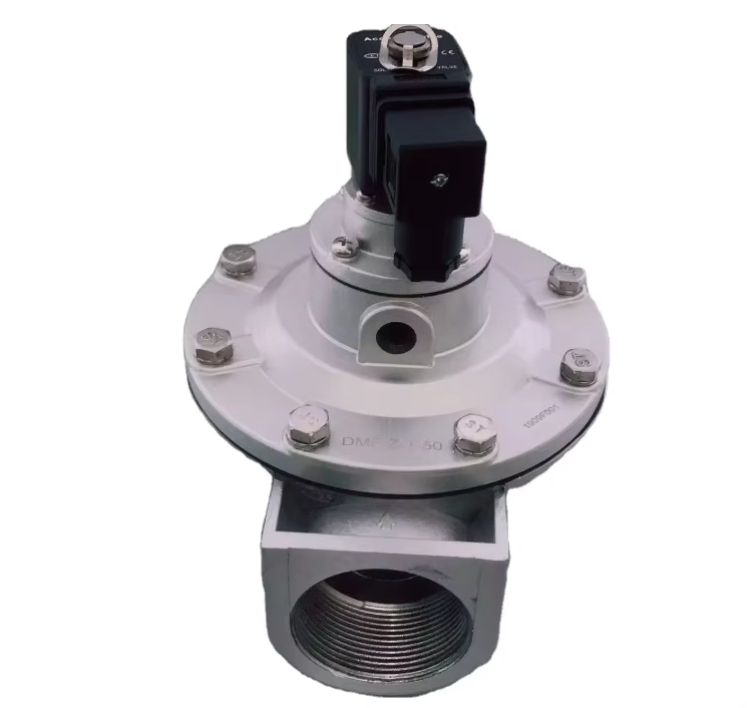

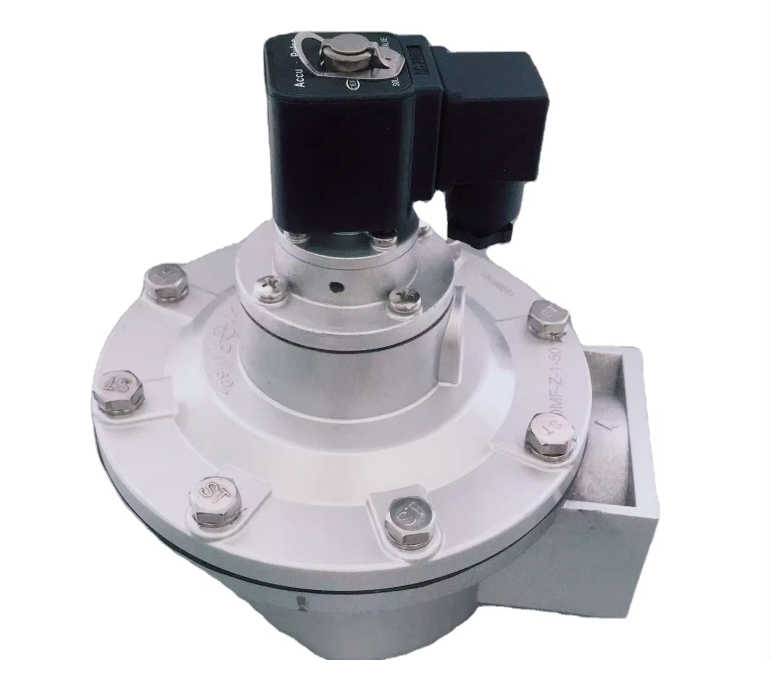

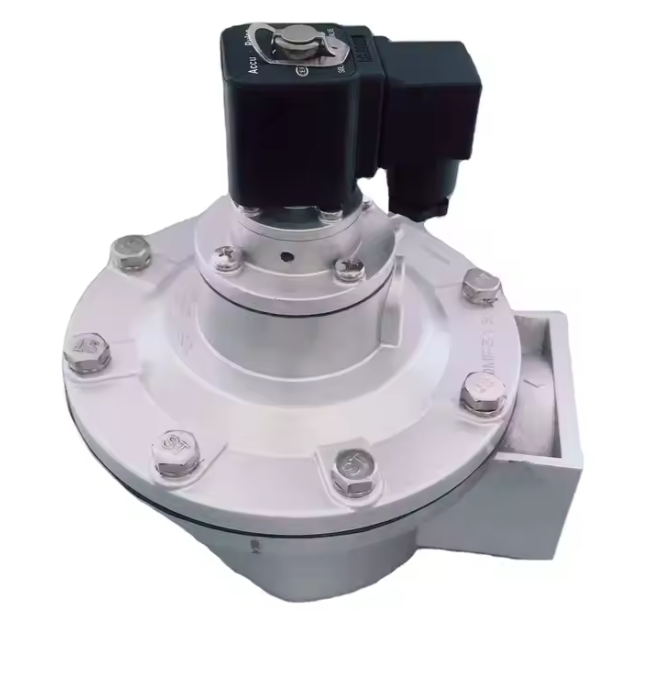

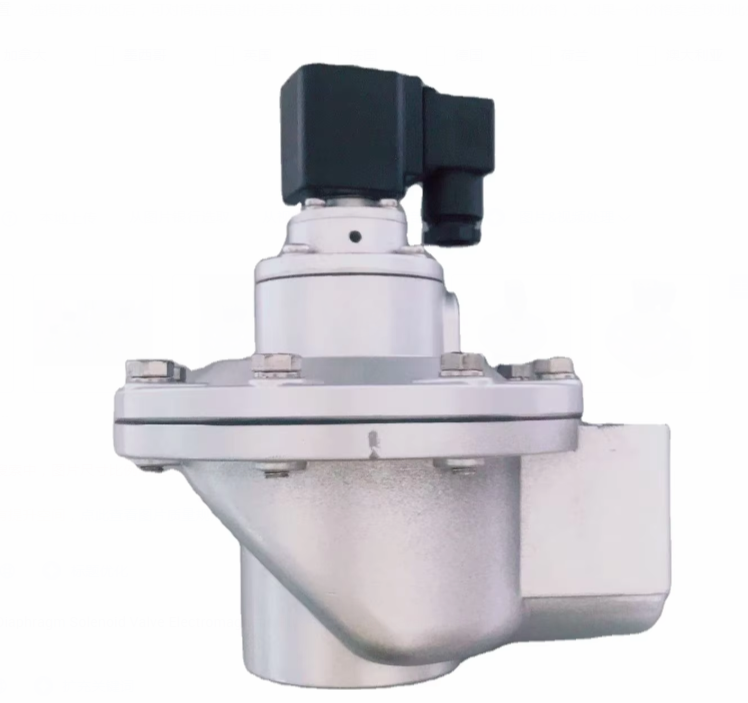

In the realm of industrial dust collection and pneumatic control systems, the DMK – Z – 50 electromagnetic pulse valve stands out as a reliable and efficient component. This valve plays a crucial role in ensuring the smooth operation of various industrial processes, especially those related to dust removal and pneumatic conveying.
Design and Structure
The DMK – Z – 50 is designed with precision and durability in mind. Its body is typically made of high – quality aluminum alloy, which not only provides excellent corrosion resistance but also makes the valve lightweight yet sturdy. The internal structure features a diaphragm that is the heart of the valve’s operation. The diaphragm is crafted from a special rubber compound that can withstand high pressures and frequent cycling, ensuring a long service life.
The valve is equipped with an electromagnetic coil. When an electrical signal is received, the coil generates a magnetic field that activates the valve. This design allows for quick and accurate control of the valve’s opening and closing, which is essential for efficient system operation.
Working Principle
The working principle of the DMK – Z – 50 is based on the interaction between the electromagnetic coil and the diaphragm. In its normal state, the diaphragm seals the valve outlet, preventing the flow of compressed air. When the pulse control instrument sends an electrical signal to the electromagnetic coil, the coil energizes and creates a magnetic force. This magnetic force pulls the armature, which in turn opens the diaphragm.
Once the diaphragm is opened, compressed air can flow through the valve at a high velocity. This sudden burst of air is used for various purposes, such as cleaning dust – laden filters in a dust collector. When the electrical signal from the control instrument stops, the electromagnetic coil de – energizes, and the diaphragm returns to its original position, closing the valve and halting the air flow.
Performance Features
- Fast Response Time: The DMK – Z – 50 offers an extremely fast response time, typically within milliseconds. This rapid response is crucial for applications where precise timing of air pulses is required, such as in high – speed dust collection systems. For example, in a large – scale industrial dust collector, the quick opening and closing of the valve ensure that each filter bag is cleaned effectively in a short period.
- High Pressure Resistance: It can withstand a wide range of working pressures, usually from 0.1 MPa to 0.8 MPa. This high – pressure tolerance makes it suitable for use in different industrial environments, whether it’s a low – pressure pneumatic system in a food processing plant or a high – pressure application in a mining dust collection setup.
- Long – Lasting Durability: Thanks to its high – quality materials and robust construction, the DMK – Z – 50 has a long service life. The diaphragm, in particular, is designed to endure millions of cycles without failure. In a continuous – operation dust collection system in a cement factory, the valve can operate for years with minimal maintenance, reducing downtime and maintenance costs.
- Energy – Efficient Operation: The valve is designed to be energy – efficient. It only consumes power when the electromagnetic coil is activated to open the valve. Once the air pulse is completed, the coil de – energizes, saving energy. This energy – saving feature is not only environmentally friendly but also helps to reduce the overall operating costs of the system.
